Selecting the right surface protection film for extruded plastic sheets is critical to preventing surface scratches, chemical staining, and transit damage during fabrication and global export.
Why Surface Protection Matters for Extruded Plastic Sheets
In high-precision industrial manufacturing, the surface quality of semi-finished plastic sheets—such as ABS, Polypropylene (PP), Polycarbonate (PC), and Acrylic (PMMA)—determines the structural and aesthetic success of the final product. Whether intended for thermoformed automotive components, chemical tank linings, or optical display panels, minor micro-scratches during transit or secondary processing can lead to costly rejections.
Applying custom protective film plastic sheets directly during the extrusion process provides an essential barrier against mechanical friction, dust contamination, and environmental exposure. However, B2B buyers frequently face a key technical choice: Should you opt for Polyethylene (PE) film or saturated Kraft Paper masking?
Polyethylene (PE) Protective Film: Characteristics & Benefits
Polyethylene (PE) protective film is the most widely specified masking choice in modern plastic sheet extrusion due to its cost efficiency, flexibility, and versatility.
- Cost-Effective Mass Protection: PE film provides a lightweight, highly economical surface shield for high-volume orders.
- Customizable Adhesive Levels: Available in low, medium, and high-tack formulations (using rubber-based or acrylic water-based adhesives) optimized for smooth, glossy, or textured plastic surfaces.
- Thermoforming Capability: Certain specialized thermoformable PE films can remain attached during shallow vacuum forming processes, keeping the plastic protected until final assembly.
- Color Coding & Branding Options: PE films can be customized in clear, transparent blue, white, or printed with OEM brand logos and handling instructions.
Paper Masking (Kraft Paper): Characteristics & Benefits
Kraft paper masking features heavy-duty saturated paper coated with a synthetic latex adhesive. It is widely considered the premium standard for high-end optical plastics and heavy secondary fabrication.
- Superior Impact & Scratch Defense: The physical thickness and fibrous density of paper masking cushion against tool drops, heavy stacking friction, and sharp metal shavings.
- Ideal for CNC Routing and Laser Cutting: Unlike PE film, paper masking burns cleanly under CO2 laser cutting without melting, fraying, or creating gummy edge buildup.
- Dimensional Rigidity: Paper masking maintains structural stability during heavy cutting, preventing edge lifting during high-speed CNC milling operations.
- Scribing and Layout Writing: Fabrication engineers can draw grid lines, drilling templates, and cut markers directly onto the paper surface.
Technical Comparison: PE Film vs. Paper Masking
To help procurement managers select the best solution for their specific application, the table below compares key technical parameters:
| Technical Feature | Polyethylene (PE) Film | Paper Masking (Kraft Paper) |
|---|---|---|
| Primary Material | Low-Density Polyethylene (LDPE) | Saturated Kraft Paper |
| Typical Thickness | 30 µm – 100 µm (1.2 to 4.0 mil) | 100 µm – 150 µm (4.0 to 6.0 mil) |
| Impact / Scratch Resistance | Moderate (Protects against light friction) | High (Protects against heavy abrasion & tool impacts) |
| Laser Cutting Performance | Fair to Poor (May melt or leave sticky edge residue) | Excellent (Clean cuts without edge melting) |
| CNC Machining & Routing | Good (Requires sharp bits to avoid film tearing) | Superior (Holds rigid edges without lifting) |
| Moisture & Water Resistance | 100% Waterproof (Ideal for humid sea transit) | Moisture-resistant (Latex treated, but prolonged wetness weakens paper) |
| Long-Term Removal Ease | Requires proper UV/temperature storage to avoid adhesive transfer | Easy peel-off even after extended storage periods |
| Relative Cost | Economical (Lower material cost) | Premium (Higher raw material & lamination cost) |
Factory Sourcing & Recommendations for Global Buyers

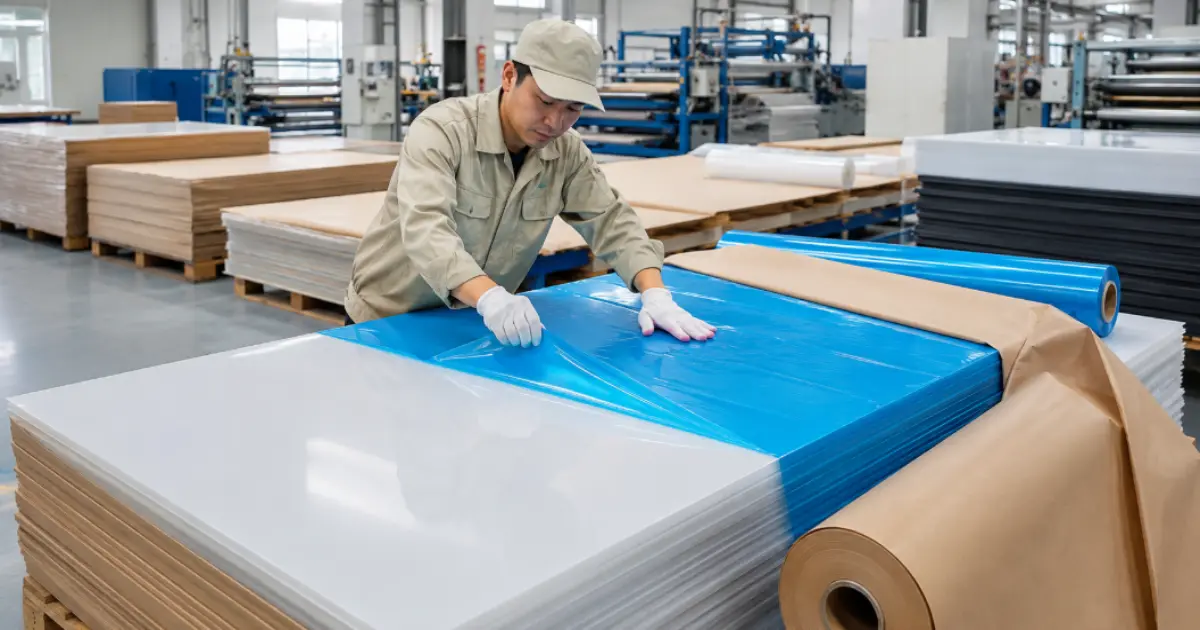

At Viethung Plastics, our custom extrusion lines in Vietnam are equipped with inline dual-sided lamination units. We tailor protective masking based on destination climate, transit duration, and end-use fabrication methods:
- Select PE Film if: You are sourcing standard industrial sheets like HDPE or PP, prioritizing ocean shipping moisture protection, or running automated thermoforming lines.
- Select Paper Masking if: You are ordering premium Acrylic (PMMA) or PC sheets intended for precision laser cutting, sign-making, or heavy manual CNC fabrication.
Frequently Asked Questions (FAQ)
Q1: Which protective film is better for laser cutting plastic sheets?
Paper masking is generally preferred for laser cutting (especially Acrylic/PMMA and PC) because it cuts cleanly without melting, vaporizing cleanly without toxic edge residue or flame flare-ups compared to standard PE film.
Q2: Can PE protective film be left on plastic sheets for long-term outdoor storage?
Standard PE protective film is prone to UV degradation under direct sunlight. If left outdoors for months, the adhesive can transfer onto the sheet surface or bake onto the plastic, making removal difficult. UV-stabilized PE film or prompt film removal after delivery is recommended.
Q3: How does moisture affect paper masking during sea freight?
Saturated kraft paper masking uses water-repellent latex treatment to resist ambient humidity. However, in tropical ocean shipping, extreme container condensation can compromise paper adhesion if sheets aren’t vacuum-sealed or stretch-wrapped on pallets.
Contact Viethung Plastics for Custom Surface Protection Solutions
Need guidance on selecting the optimal protective film for your extruded plastic sheet order? Contact our engineering team at Viethung Plastics Contact Page to discuss custom masking, sheet tolerances, and direct factory container loading.
